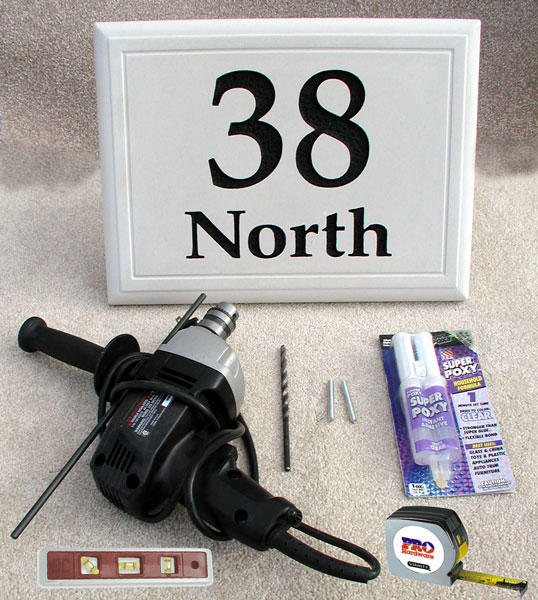

You will need the following items to complete installation:
1. Drill (Hammer Drill Recommended) 2. 1/4" Masonry Drill Bit 3. Tape Measure 4. 2-part Epoxy (quick setting recommended) 5. 2 1/2" threaded pins (included) 6. Level (optional) |

|
|


|

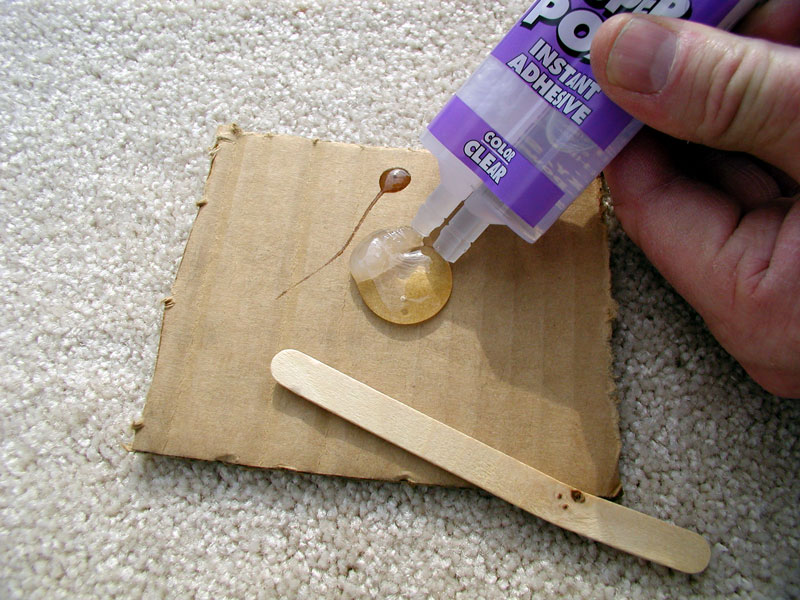

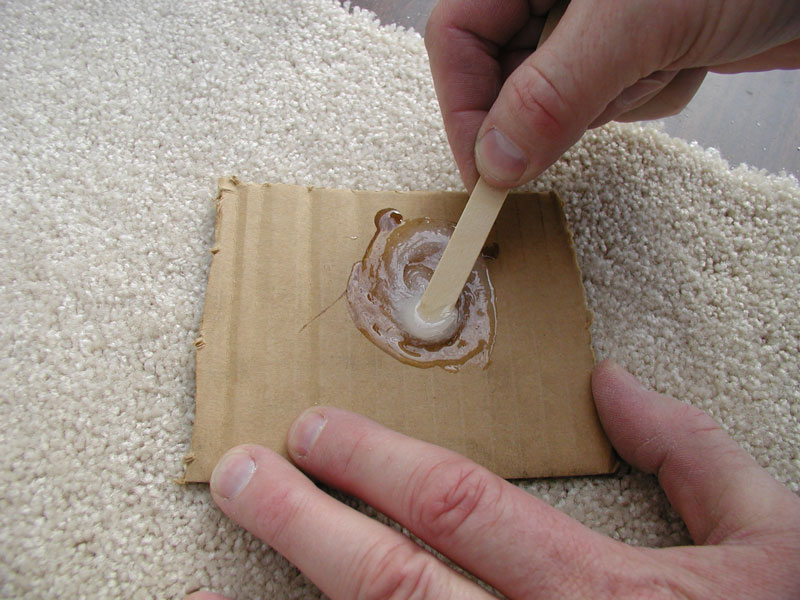

Step #1: Mixing Epoxy
Mix approx. 1 tablespoon of the 2-part epoxy, following manufacturers instructions. |

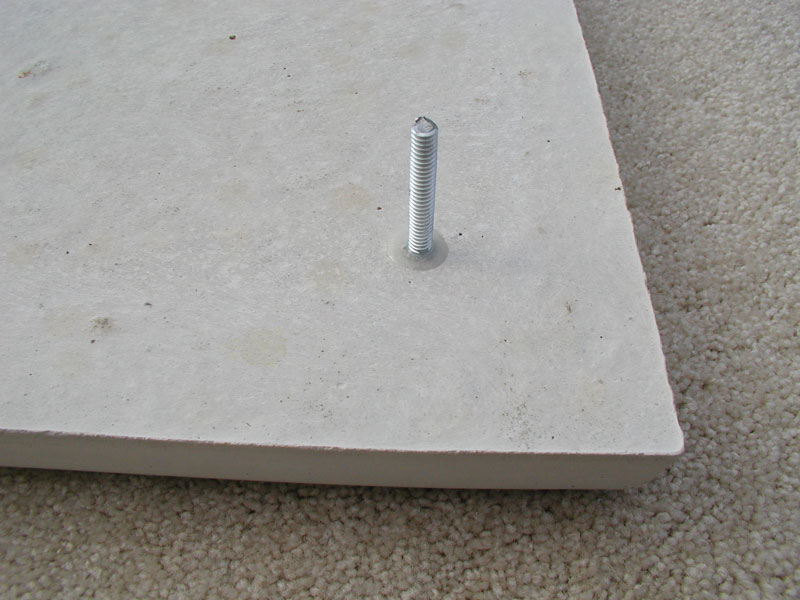

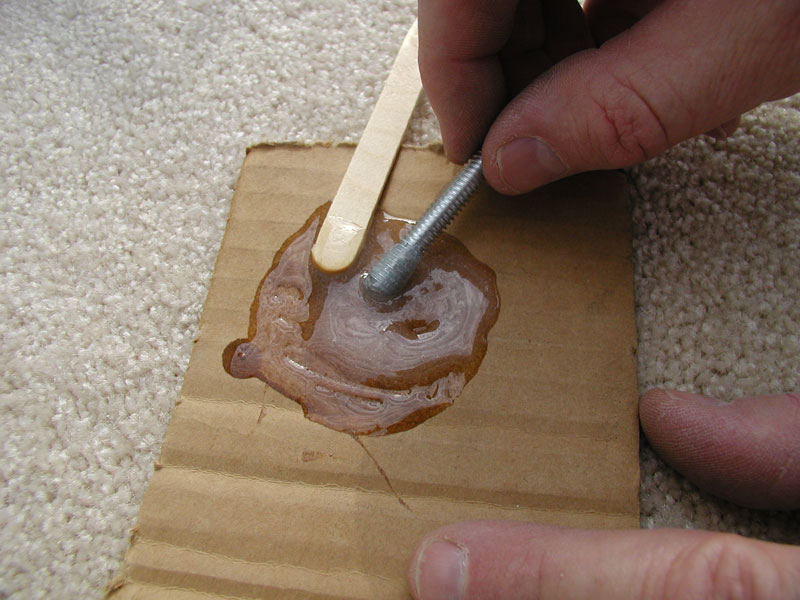

Step #2: Attaching Pins
Coat one end of each 2 1/2" threaded pin with epoxy. Insert the pins into the holes, making sure that there is adequate epoxy to anchor the pins securely. Insure that the pins are perpendicular to the surface of the address block.
|

|
|

|
Step #3: Curing Epoxy
Allow epoxy to cure according to manufacturers directions. |

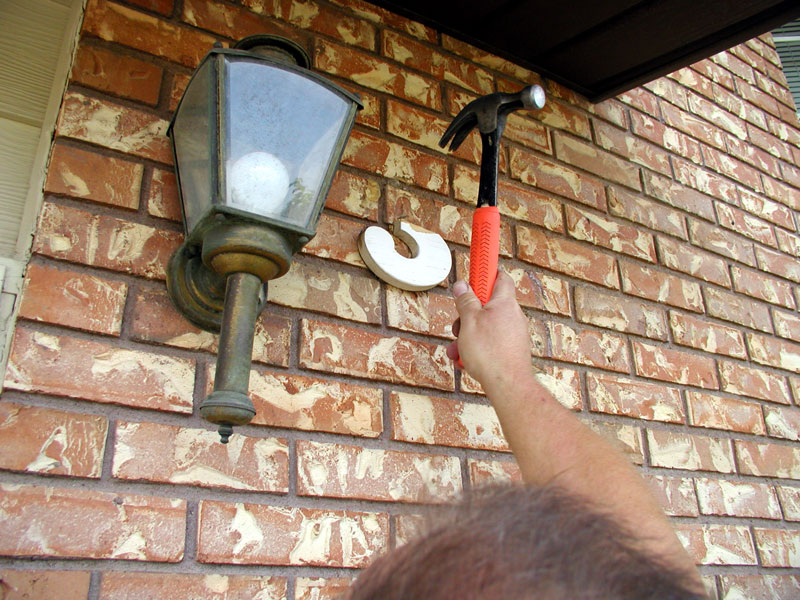

| Step #4: Removing Existing House Numbers
Remove existing house numbers. |

|
|

|
Step #5: Determine New Address Block Location Determine New Address Block Location |

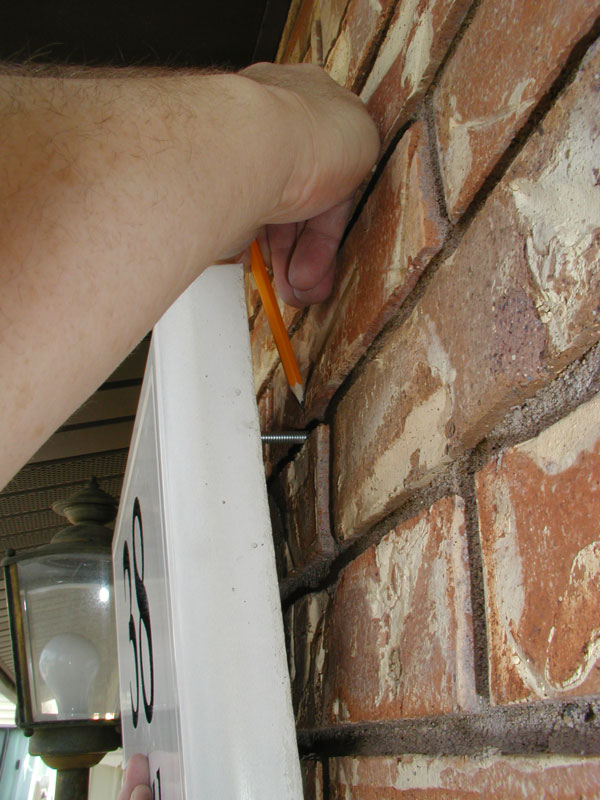

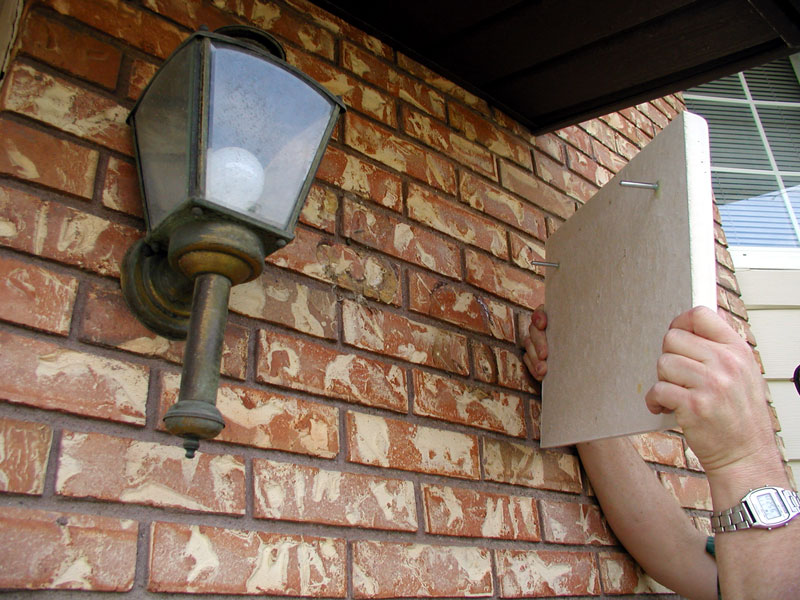

| Step #6: Marking the First Hole
While holding the address block in the desired position, mark the location of one of the mounting pins. |

|
|

|

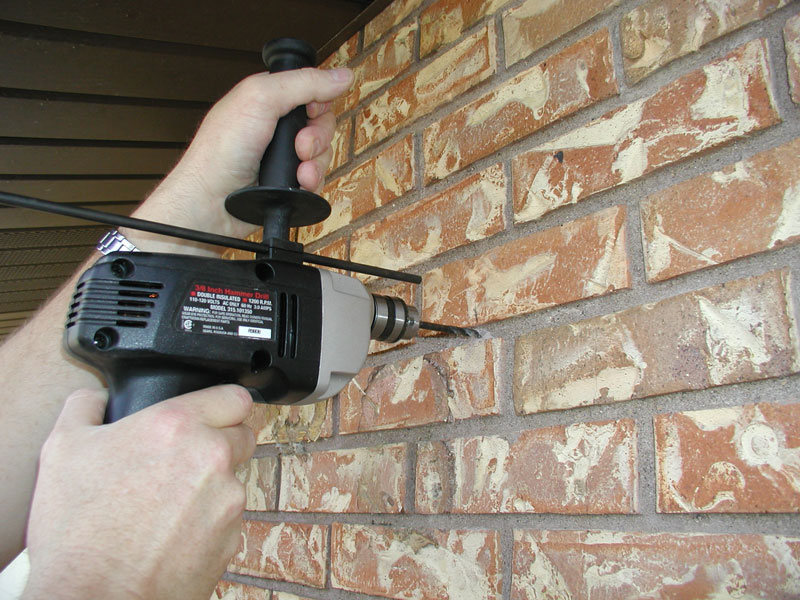

Step #7: Drilling First Hole
Using a hammer drill and 1/4" masonry bit, drill hole in the location marked previously (depth of approx. 1 1/2"). |

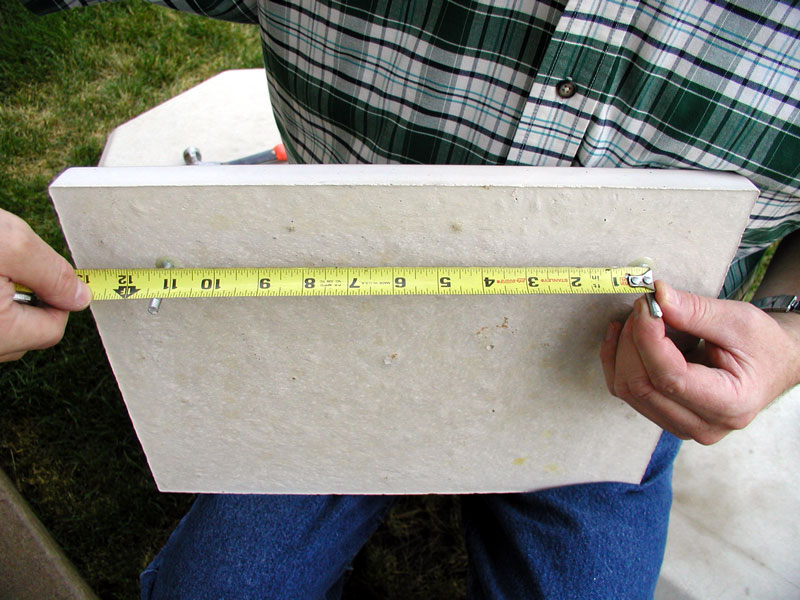

| Step #8: Measuring Distance Between Pins
Using a tape measure, measure the distance center to center of the pins mounted in the address block. |

|
|

|

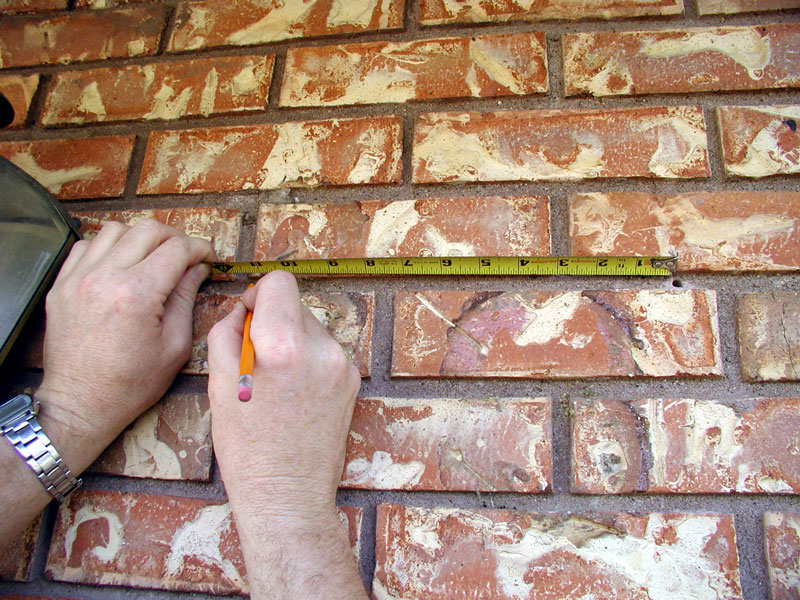

Step #9: Marking the Second Hole
Using the measurement obtained in the previous step, mark the location for the second hole, insuring that the address block will be level. |
| Step #10: Drilling Second Hole
Using a hammer drill and 1/4" masonry bit, drill hole in the location marked previously (depth of approx. 1 1/2"). |

|
|

|
Step #11: Check for Proper Alignment
Hold address block to wall, and check for hole alignment with pins. If both pins cannot be inserted, and allow the address block to lie flat against the wall, elongate the holes to accommodate the pins. |

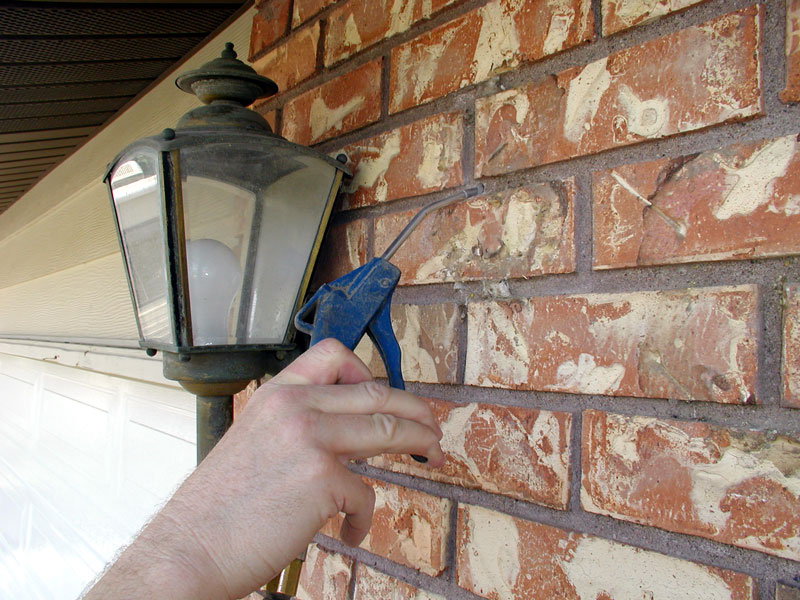

| Step #12: Remove Dust From Holes
Using an air blower or vacuum, remove the dust from the holes to ensure proper bonding. |

|
|

|

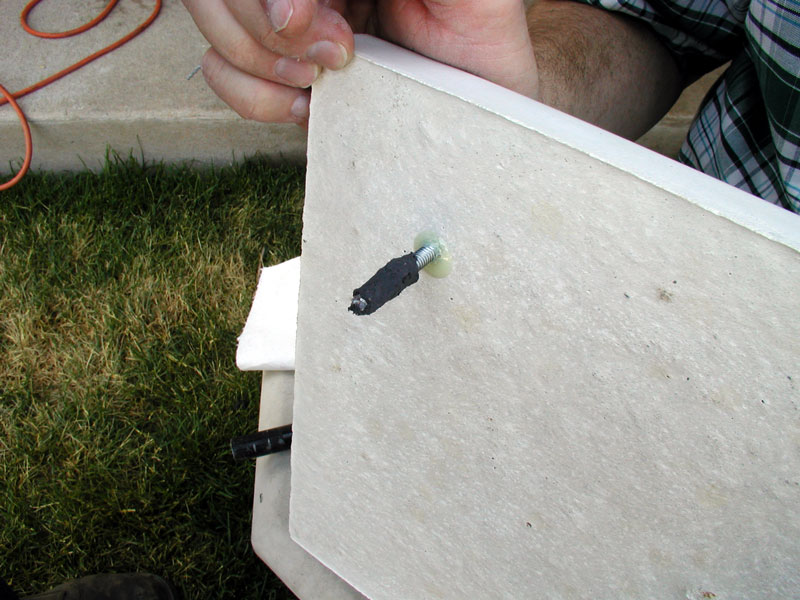

Step #13: Apply Epoxy to Pins
Using either 2-part liquid or kneadable epoxy, apply liberally to the two pins. |
| Step #14: Final Installation
Put block in place, carefully aligning pins with the holes. Press firmly to insure the block is completely in contact with the wall. |

|

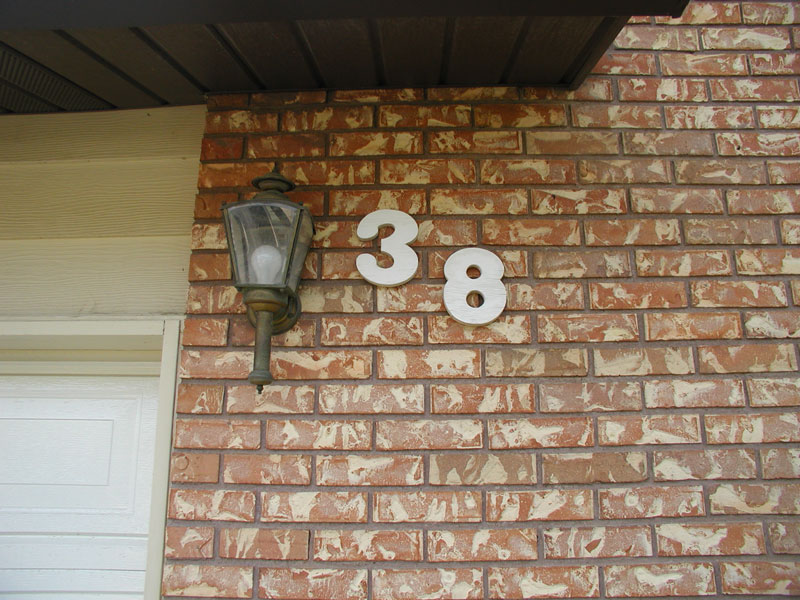

Before

|

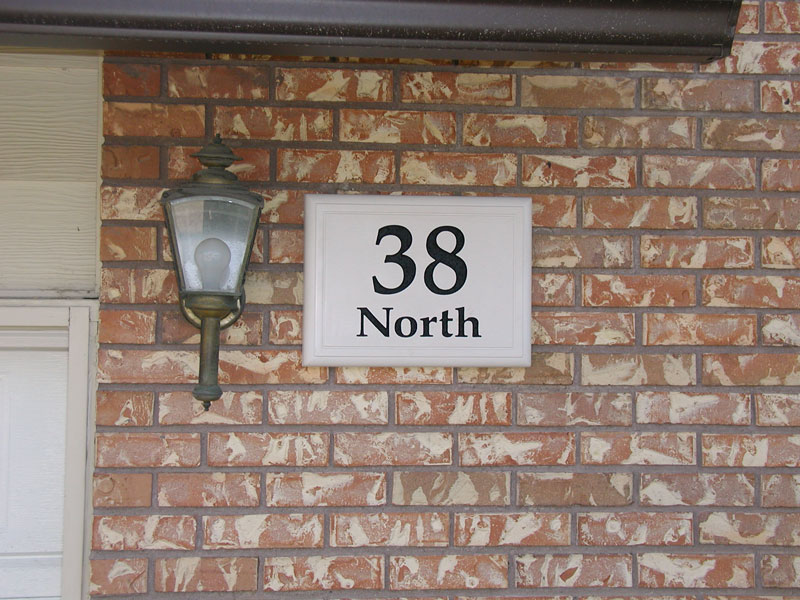

After

|
